Design Approach:
Delivery of pediatric health care services in all requires not only on call and palliative medical care but also all the complementary facilities including nursing care, assistance for children’s parents, space planning and other services.
The absence and non-functionality of one or more of the complementary inputs affect the quality of services, which are vital for healthy and dignified healing.
The Children Hospital & Research Centre program for a 100 bed hospital.

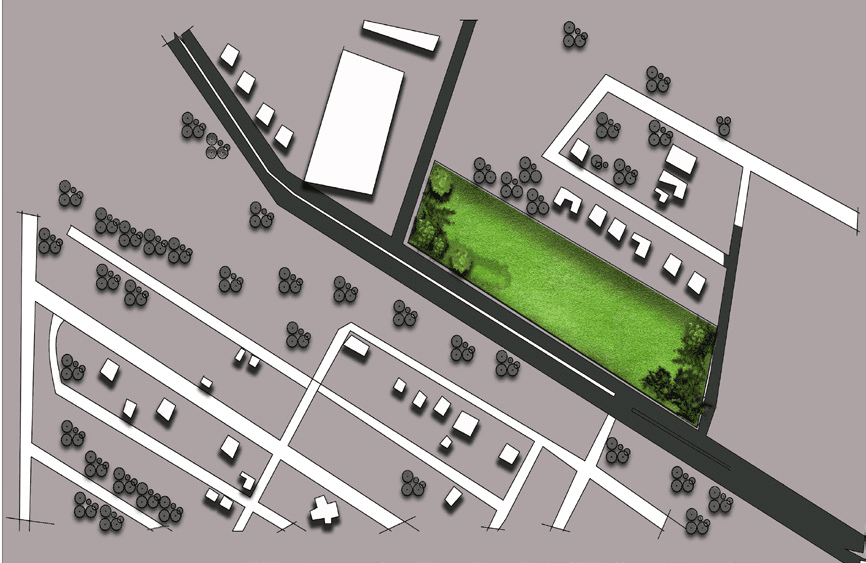

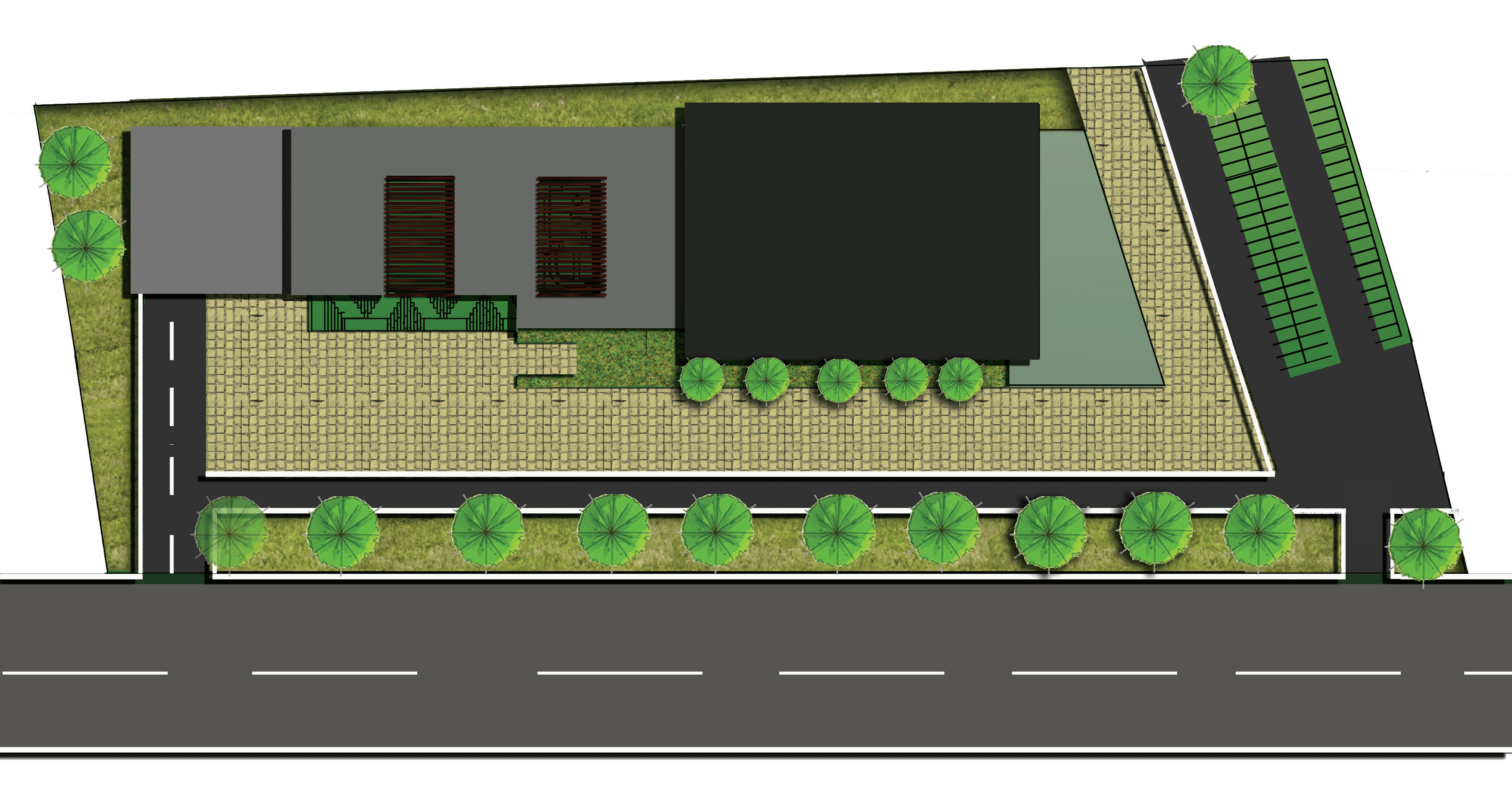

Site Details:
TOTAL SITE AREA:13,900 SQ.M
Open space requirement:10%
=1390 SQ.M
FSI alloted for this area:1.5
built up area=total area xFSI
13900X1.5
=20850
Toilets,circulation spaces and open spaces=30%
(as mentioned in brief)=6255sq.m
Total floor area=Built up area-circulation
=20850-6255
=14595sq.m
Playful environment
Gender sensitive planning
Contemporary ideas of local context
Easy accessibility

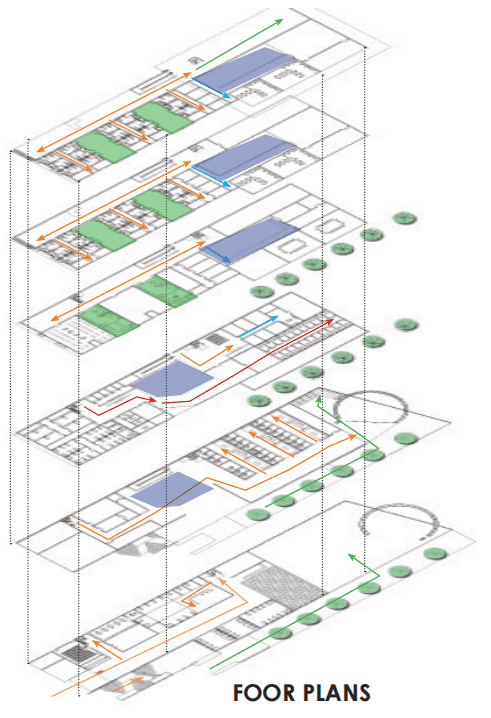

FIFTH FLOOR
Inpatient Rooms
IT department
FOURTH FLOOR
Inpatient Rooms
IT department
THIRD FLOOR
Library
Medical records department
Admin department
Conference hall
SECOND FLOOR
Major and minor OT
Pre and post recovery rooms
Doctor’s lounge
ICU
CSSD
FIRST FLOOR
Radiology
Outpatient department
Reception and Lobby
Laboratary
Training centre
GROUND FLOOR
Emergency department
Cafeteria
Prayer room
Park spaces
Play area
